TT-430Y

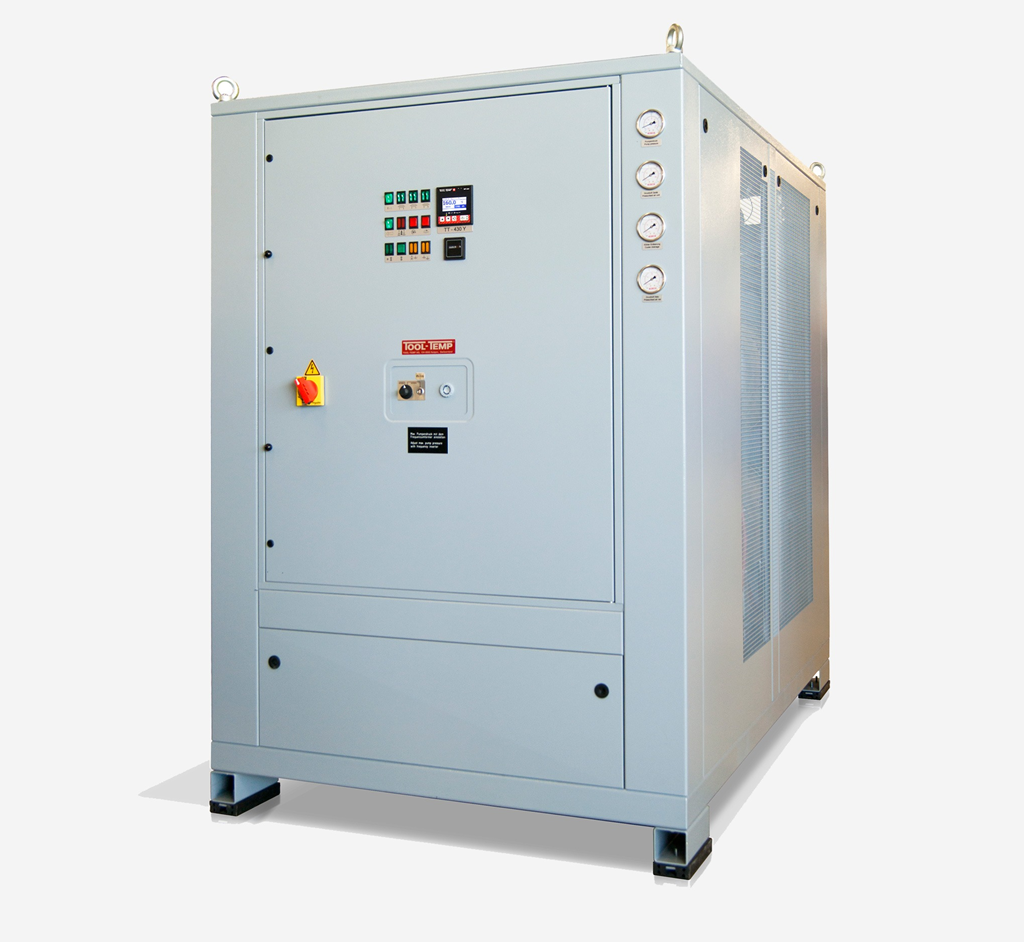

This 144 kW heating and cooling unit is for use with temperatures between - 20°C to 240°C with a heat transfer liquid.
This 144 kW heating and cooling unit is for use with temperatures between - 20°C to 240°C with a heat transfer liquid.
It is designed for use with double walled vessels and reactors and is a three-circuit cooling system for operations below zero degrees.
-
Self-optimizing temperature controller with digital display of the set and actual temperature. With high precision regulation in 1/10° range; can be adjusted to read °C or °F.
-
Automatic temperature control – difference between set and actual temperature activates an alarm.
-
Lime scale free heat exchanger.
-
Digital flow indication with control of the minimum flow.
-
All components in contact with water are made from corrosion resistant stainless steel.
-
Heating with automatic cascade connection.
-
Leak free high temperature pump with axial face. The pressure is displayed by manometer.
-
Hot oil circuit with by-pass, which ensures internal circulation if valves are closed.
-
No oil cracking because of special construction of the heating elements.
Temperature range -20°C up to +240°C with a heat transfer liquid
Temperature control self-optimizing, electronic microprocessor controller MP-988 with digital display of the set and actual value.
Automatic temperature monitoring.
Flow control electronically, with digital display and automatic control of the
minimum flow.
Heating capacity (Oil) 144 kW
Switchable in stages 32 / 32 / 32 /16 / 16 / 16
Cooling capacity
Cooling Capacity : 600 kW at 300°C
Cooling circuit 3 : 240°C to 110°C
Cooling circuit 2 : 130°C to 30°C
Cooling circuit 1 : 40°C to - 20°C
Pump capacity motor 7,5 kW
Pressure mode max. 4,0 bar
Flow rate max. 500 l/min
Flow Control. Frequency inverter for pressure control
Expansion tank capacity 130 litres
Filling amount 200 litres
Expansion volume 100 litres
Connections
Oil circuit 2” Loose flange DN50/PN10
Cooling water 3 1½" BSP female thread
Cooling water 2 1½" BSP female thread
Cooling water 1 Water-glycol 1½" BSP female thread
Air pressure min. 5 bar
Dimensions (L x W x H) 2‘130 x 1’300 x 1‘950
Weight (empty) approx. 1’553 kg
Colour silvergrey RAL 7001
- Automatic level control for dry run protection.
- Electronic temperature limiter in the controller and separate mechanical safety thermostats.
- Main switch, transformer and motor protection switch.
- Horn in case of failure.
- All failures are visually indicated.
